Accessories
In addition to our frame, wall, and roof systems, we have a industry standard other components of a metal building system generally referred to as accessories.
These include roof vents, light transmitting panels, interior liner panels, louvers, wall lights, wall openings, windows, pedestrian doors, overhead doors, fascias, mansards, canopies, and trim in general. We have a in house capability to create any numbers of these items are required to complete a metal building system. These individual components are also manufactured as integral units in our manufacturing plant.
Our inhouse design team make sure all the accessories used should be compatible in both design and appearance with the wall and roof systems that they penetrate.

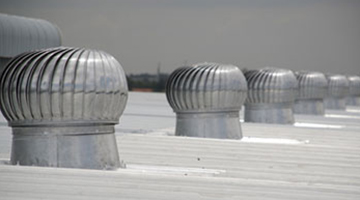

Turbovent
|
Turbine Dia |
750 mm |
|---|---|
|
Neck / Throat |
600 mm |
|
Height |
425 mm |
|
Vanes (Blades) |
42 Vanes, Aluminum 0.5/0.6mm thickness |
|
RP Base Plate |
2mm thick, 1.07 mtr wide and 1.80 mtr long |
|
Weight of Fan |
5.5 to 6.00 Kg |
|
Base Length Range |
1600mm / 1700mm |

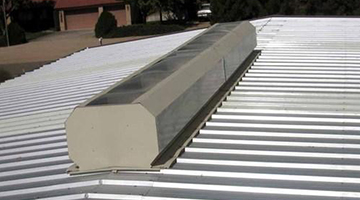

Ridge Vent
|
Material |
Steel / Stainless Steel, Aluminum, FRP |
|---|---|
|
Features |
Water Proof, Tamper Proof, Corrosion Resistant, Durable Coating |
|
Surface Treatment |
Color Coated |
|
Technique |
Cold Rolled |
|
Dimensions |
600X1000, 725X1000, 925X1000 mm |
|
Weight of Fan |
5.5 to 6.00 Kg |
|
Base Length Range |
1600mm / 1700mm |

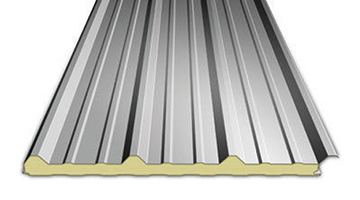

Insulation
We offers wide range of PUF Insulated Panels for the various applications. Shelters for Sub Zero Temperature Areas and many more. We offer the range of thickness of panels as follows with various fascia options:
|
Wall Panels |
40, 50, 60, 80, 100, 120, 150 mm. |
|---|---|
|
Roof Panels |
30, 40, 50, 60, 80, 100, 120, 150mm |

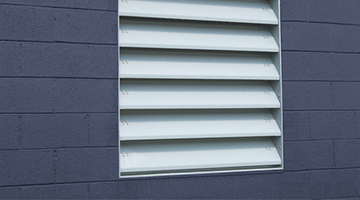

Louvers
Steel louvers are designed and applied in custom lengths ready for quick installation. The special design allows free flow of air, restricting entry of water & dust.
-
Light weight, ready to install
-
Long life
-
Maintenance free

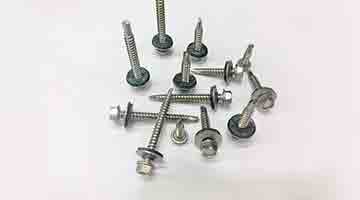

Self Driling Screw
Galvanized, High Quality, Accurate drilling, Long life, Economical.
|
Type |
Round-head |
|---|---|
|
Plating |
Silver |
|
Size(mm) |
6.0 mm-130 mm |
|
Material |
Stainless Steel |

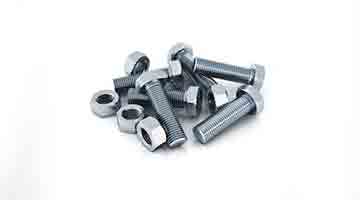

Nut & Bolt
Based on many years of experience in the relevant domain, we have been indulged in providing MS Nut and Bolt in the market.
-
Precise design
-
Increased strength
-
Strong fitting
-
Highly durable
-
Sturdy construction
-
Hardened material made
